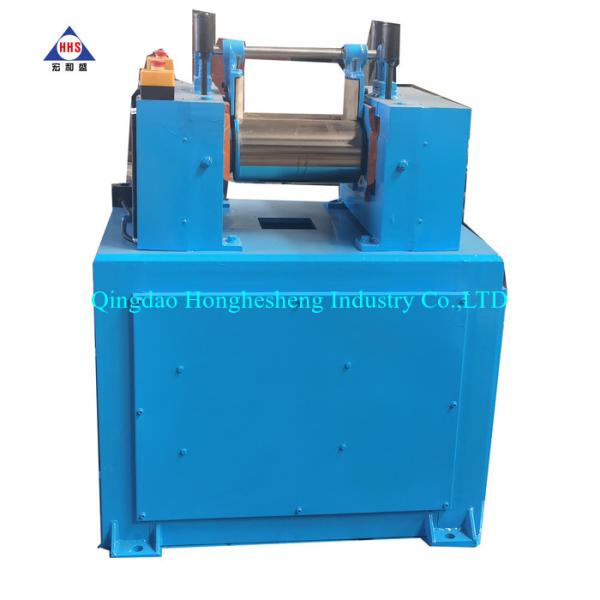

XK-160 Laboratory Scale Two Roll Open Rubber Mixing Mill/ Small Mixing Mill For Lab
Introduction:
New Electronic Heating Lab PVC Two Roll Mill For Rubber
is engineered to provide unmatched performance for masticating and kneading natural rubber,synthetic rubber , EVA or PVC pellets with various chemical materials,This machine is mainly used to plastic ,hot mill and mixing mill of natural and synthetic rubber for rubber product factory
Application:
New Electronic Heating Lab PVC Two Roll Mill For Rubber
It is widely used in rubbers and plastics industry for polymer mixing, such as PVC, color master batch. It consists of roll, bearing, gap adjusting device, electric control system, safety device, etc.
Technical parameters:
| Model | | ZL-3018-76 | ZL-3018-120 | Zl-3018-160 | ZL-3018-200 | Zl-3018-230 | Zl-3018-300 | ZL-3018-400 |
| Diameter of roll | mm | 76 | 120 | 160 | 200 | 230 | 300 | 400 |
| Length of roller face | mm | 300 | 350 | 350 | 500 | 650 | 650 | 900 |
| Mixing Capacity | kg | 0.002-0.6 | 0.002-2 | 0.002-2.8 | 0.002-5 | 0.005-10 | 1-15 | 5-30 |
| Front roll surface speed | rpm | 19 | 19 | 19 | 19 | 19 | 19 | 19 |
| Friction ratio | | 1:1.30 | 1:1.35 | 1:1.35 | 1:1.35 | 1:1.27 | 1:1.27 | 1:1.27 |
| Roll gap range | mm | 0-3 | 0-6 | 0-6 | 0-8 | 0-12 | 0-12 | 0-15 |
| Driving Power | KW | 1 | 1.5 | 2.2 | 7.5 | 11 | 30 | 37 |
| Heating Mode | Electricity heating , Oil Heating ( option) |
| Cooling Mode | Water Cooling ( option) |
| Roll Temperature | Room temperature -- 300℃ |
| Roll Hardness | HRC 50 ~ 60 |
| Temperature Accuracy | ± 2 ℃ (we adopt the high accuracy PID micro computer controller) |
| Safety device | It have 6 safety buttons and safety guard is option |
| Machine weight | kg | 160 | 460 | 660 | 860 | 1960 | 2960 | 3800 |
| Overall dimension | mm | 1100x400x1180 | 1100x550x1380 | 1200x650x1380 | 2200x750x1380 | 2200x950x1580 | 2600x950x1580 | 5295x1789 x170 |
| Power | 380V 3 phase 50-60hz |
Feature:
1. Construction of mill rolls: drilled roll, bored roll, grooved roll
2. We can design speed ratio as per customers' formula and processing requirements.
